7.1 Algorithm design and problem-solving

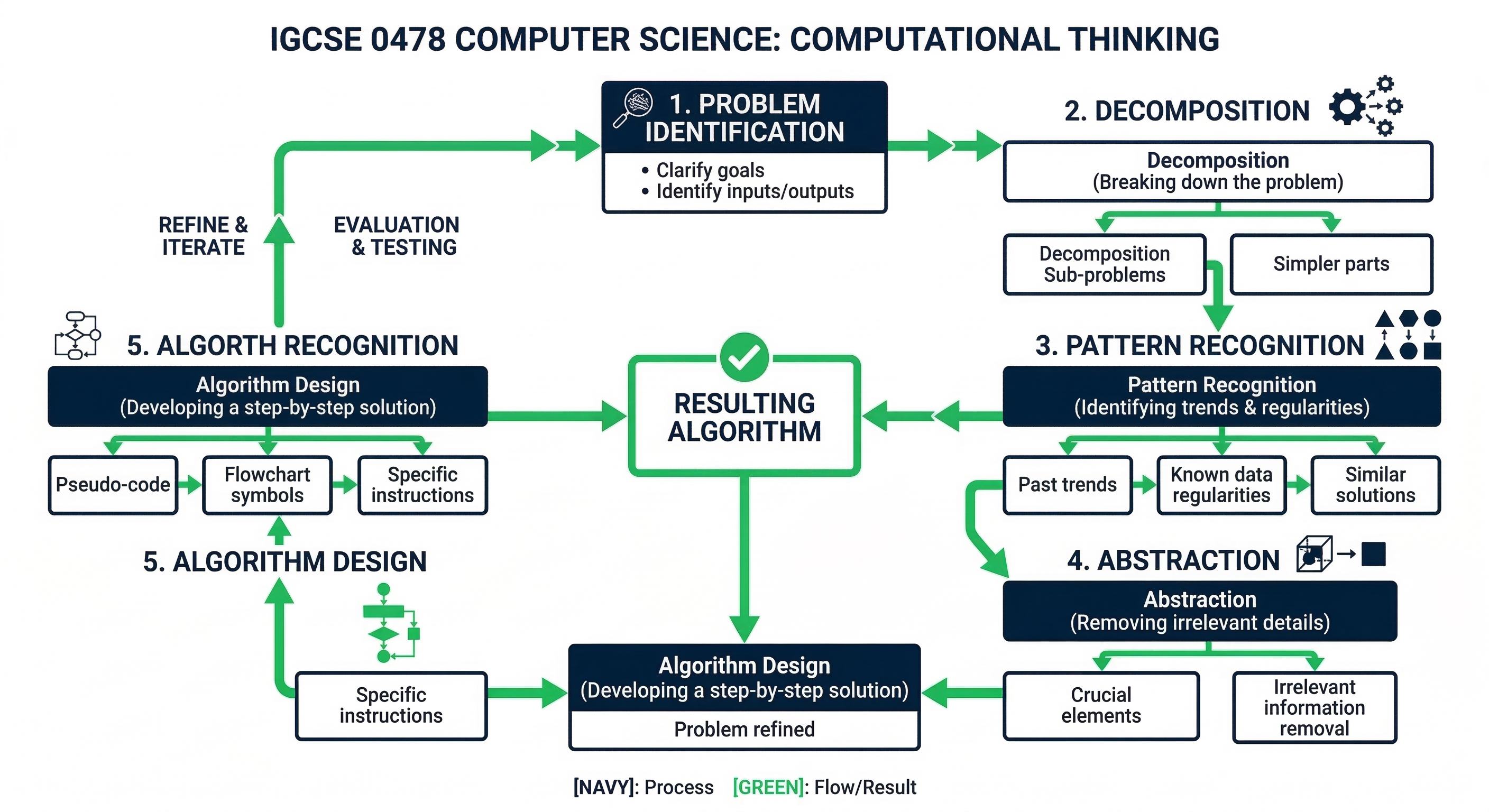

Computational Thinking
Solving Complex Problems
Before writing code, a computer scientist must use two key techniques:
- Decomposition: Breaking a complex problem down into smaller, manageable sub-problems (e.g., breaking a "Library System" into "Add Book", "Search", and "Borrow").
- Abstraction: Removing unnecessary details to focus on the essential features (e.g., in a car simulation, we need the speed but not the color of the seats).
Flowchart Symbols
Standard Symbols
Cambridge requires specific shapes for flowcharts:
- Terminator (Oval): Start and End.
- Process (Rectangle): Calculations or assignments (e.g., x <- x + 1).
- Input/Output (Parallelogram): Reading or printing data.
- Decision (Diamond): Yes/No questions.
- Subroutine (Double-edged Rectangle): Calling a pre-defined process.

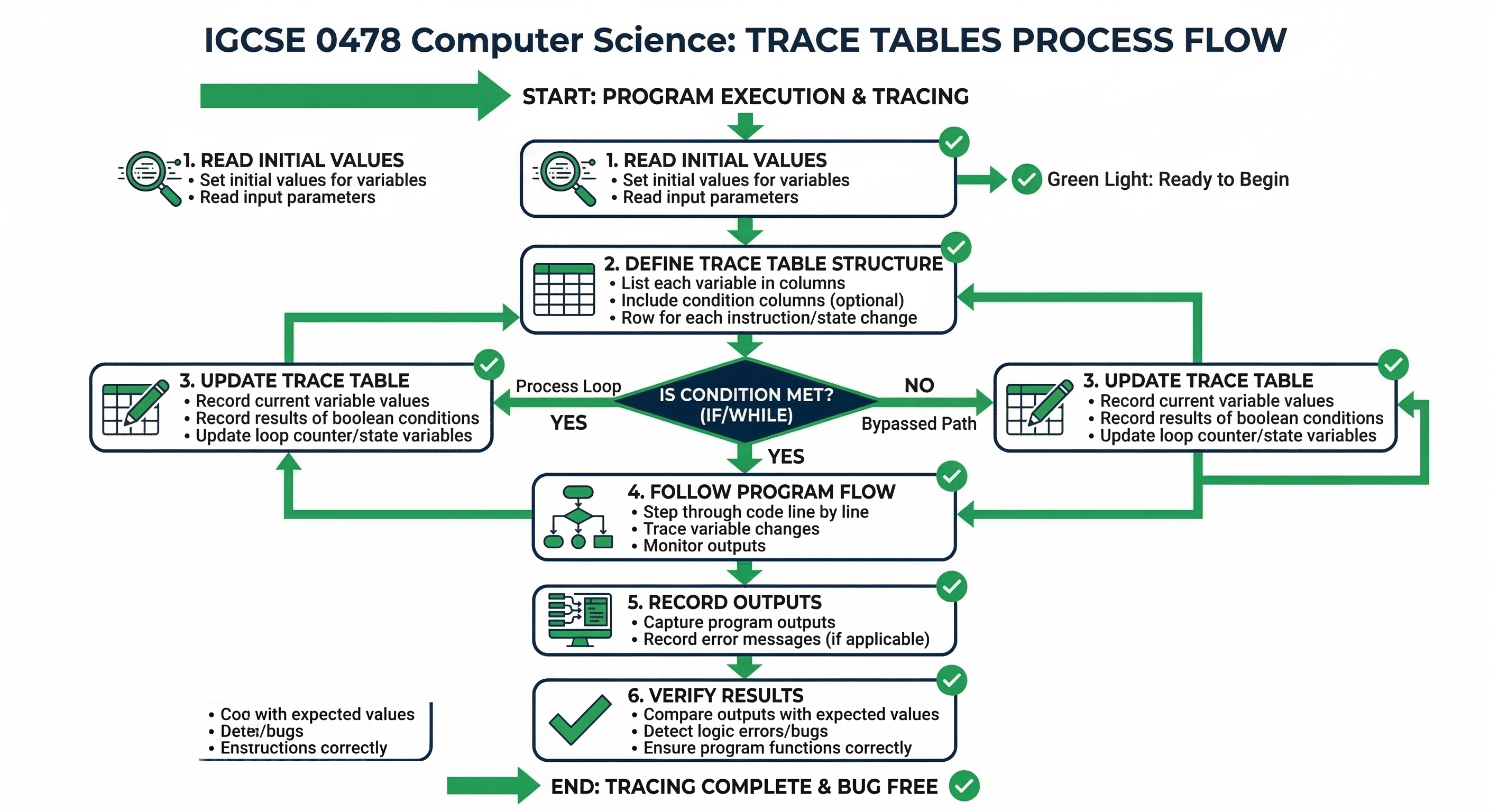

Trace Tables
Tracing Algorithms
A trace table is used to track the values of variables as an algorithm runs. This helps identify logic errors.
Examiner Tip: Each time a variable changes, use a new row in the table. Do not overwrite values in the same cell.
This is essential for testing "Counting" and "Totalling" algorithms.
